Theatre Reconstruction

7 Stories

Fall 2022

Model reconstruction of the Dalhousie University Fountain School of Performing Arts Sir James Dunn Theatre in 3/4” scale

FINAL MODEL

  • Front View

  • Top View

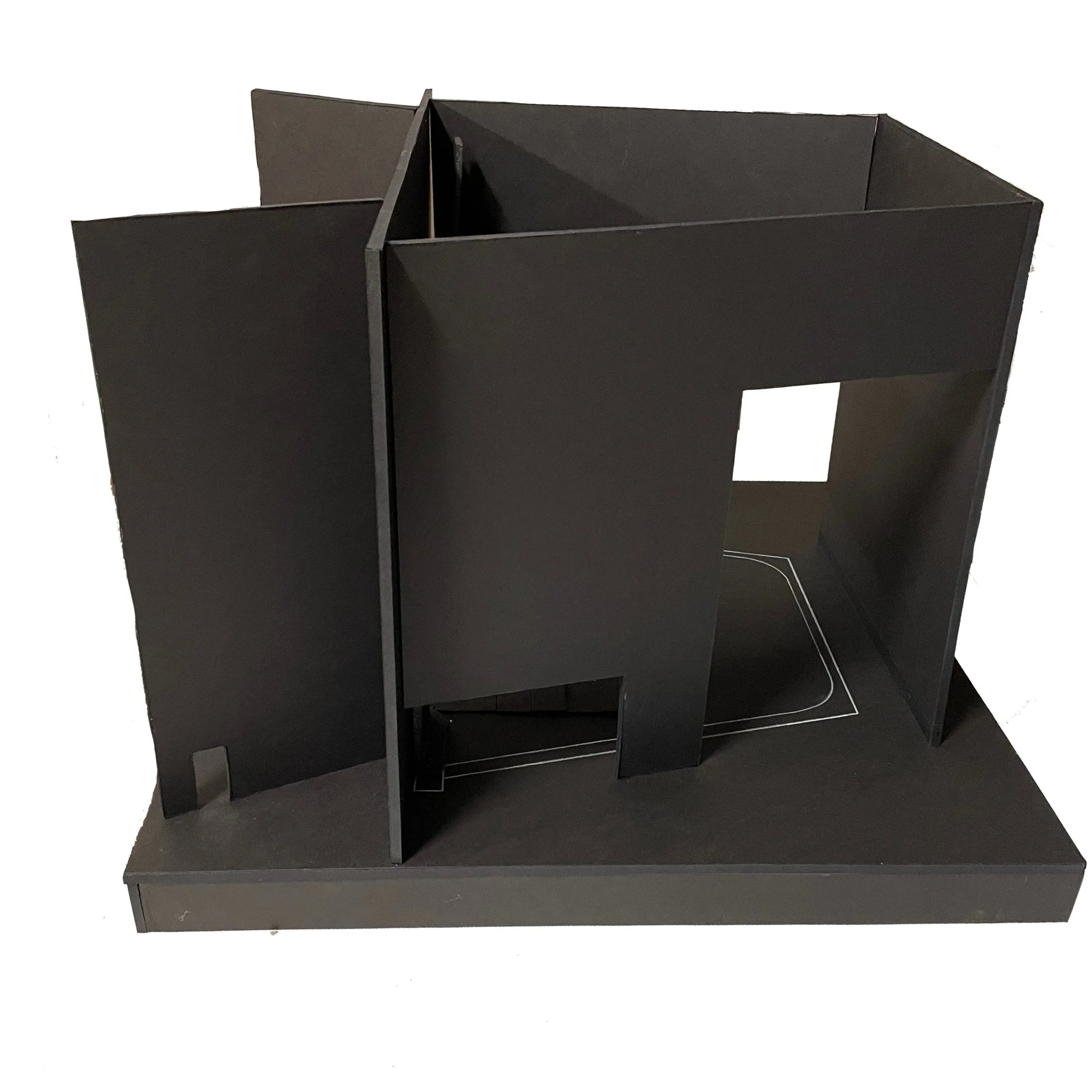

  • Side View

PROCESS PHOTOS

Materials used: Foamcore

  • This model build was unique and had to have the floor traps removable for the set design and design presentation.

  • I cut the sides of each strip on an angle so that they would sit flat but could also be removed.

  • Individual Pieces

  • Base Sketched with White Pencil Crayon

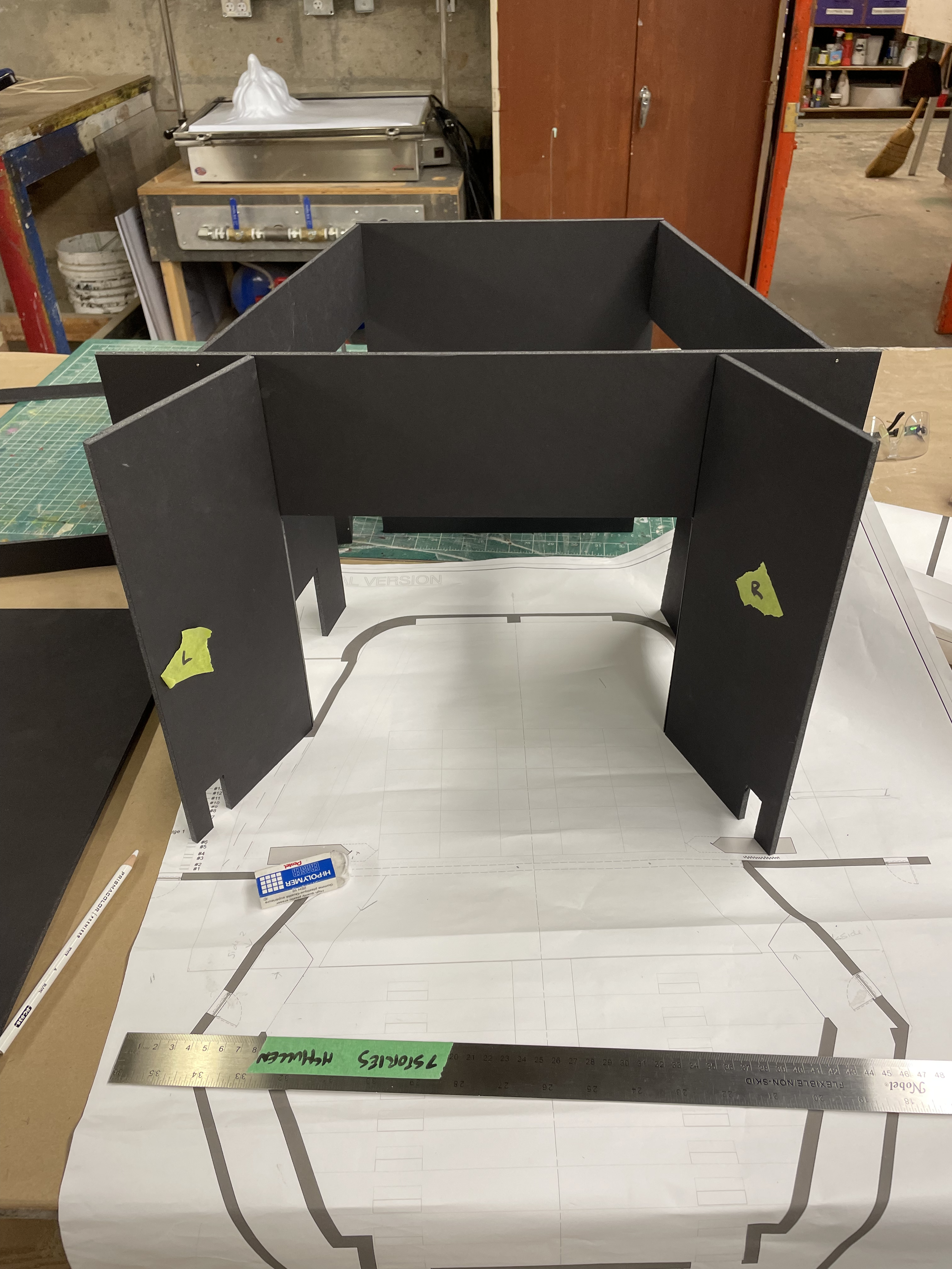

  • Rough Assembly Before Glueing
